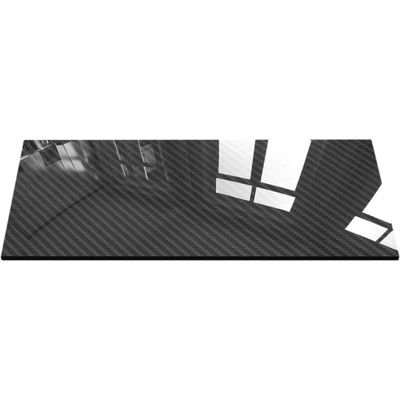

3K Plain Matte High Modulus Carbon Fiber Sheet 500X500X10mm with Shiny and Clear Appearance

Ürün Açıklaması

3K Plain Matte High Modulus Carbon Fiber Sheet 500X500X10mm with Shiny and Clear Appearance

Carbon Fiber Sheet is manufactured using 100% carbon fiber reinforcement and epoxy resin matrix, cured under pressure at elevated temperature to produce a carbon fiber sheet with engineering-grade mechanical properties and a class-A surface finish.

The sheet has the classic 2/2 twill, 3k woven carbon fiber appearance with a pin-hole free high gloss finish. The reverse of the sheet features an even-textured 'peel ply' finish suitable for secondary bonding.

3K carbon fiber: The most popular, most common carbon fiber. It gives the plate a classic carbon fiber look. 3K is the workhorse of carbon fiber. It's light, relatively stiff, and easy to get and make. 3K got higher elongation before failure and ultimate strength than 6K, 9K, or 12K. Because 3K is a smaller bundle of fibers, thinner fabric can be woven than with 12k, or thinner tubing can be filament wound, but if the fiber is the same grade, stiffness and strength are not affected by tow size. It is used in Aviation, the industrial field, architecture, sports, and recreational goods.

3k carbon fiber sheet has extremely high strength, light weight, with a shiny and clear appearance, widely used for model helicopter parts and the hobby market. It can be made into pure carbon fiber or glass fiber core with carbon fiber surfaces, thickness range from 0.2mm to 60mm; customized thicknesses and sizes are available. Stand for complete solution, we supply full-size to pre-cut panels, as well as CNC-machined parts to your specification. Maximum dimension is 8x3 meters.

Product Advantages

*30-40% lighter than aluminum
*5 times stronger than steel (at the same weight)
*very low thermal expansion
*good corrosion resistance
*attractive appearance
*vibration damping properties

Carbon Fiber Sheet Plate Specification:

FAQ

1. What products and services does LIJIN Composites offer?

LIJIN Composites offers a range of products and services related to carbon fiber composites. We provide custom carbon fiber parts, sheets, round & shaped tubes, profiles, rollers and telescoping systems. Our services include design, engineering, prototyping, and manufacturing of carbon fiber components tailored to specific requirements.

2. Can LIJIN Composites accommodate custom orders?

Yes, we specialize in customizing carbon fiber solutions. Whether you need unique dimensions, complex shapes, or specific performance carbon fiber or composite products, we can work closely with you and meet your project needs.

3. What industries do LIJIN Composites cater to?

LIJIN Composites serves a diverse range of industries, including aerospace, automotive, sports, renewable energy, marine, medical, and industrial applications. Our carbon fiber solutions find application in various sectors where lightweight, high performance and corrosion-resistant, low thermal expansion materials are in demand.

4. How do I place an order with LIJIN Composites?

To place an order, simply reach out to our sales team through our website or the contact information provided. Provide details about your project requirements, such as specifications, quantities, and any customization and strength needs. Our team will assist you throughout the ordering process, including providing quotes and production process, lead times, etc.
